CH1-A - LED Blink

We'll use Maker Tape to connect the LED to the Bit Board on a LEGO baseplate.

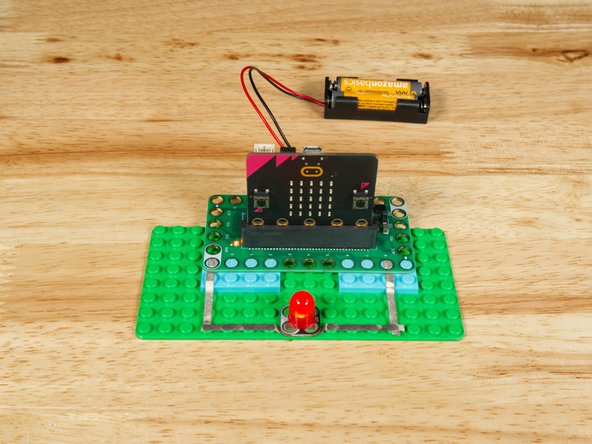

Connect the Negative (-) side of the LED to a Ground (GND) hole on the Bit Board.

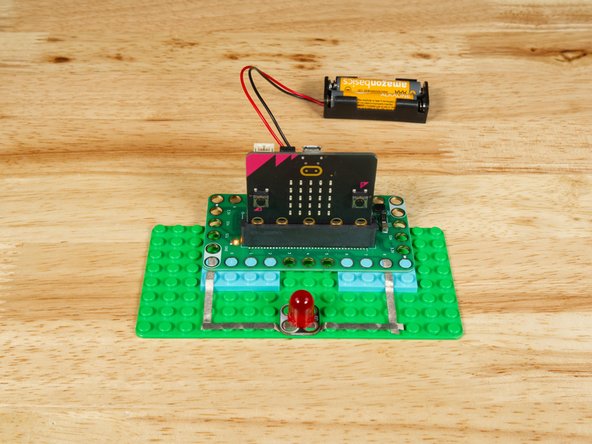

Connect the Positive (+) side of the LED to Pin 8 on the Bit Board.

You'll notice the Ground on the Bit Board (as well as the LED and other Crazy Circuits components we'll use) is color coded White.

If you've never used a micro:bit before you'll want to check out this guide: Bit Board V2 Setup and Use

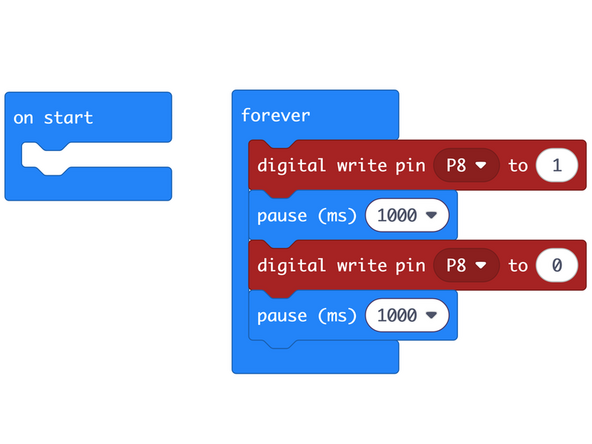

We're going to load the following code for our LED Blink program: https://makecode.microbit.org/_e9bEXrfRd...

This code will make the LED turn on, wait one second, turn off, wait another second, and then repeat.

The digital write command can be set to 1 or 0 to set a pin high or low which will turn on or off an LED in this example.

We can choose which pin will be affected using the drop down control in the digital write command. Here it is set to Pin 8.

Once the code is loaded it should start running immediately.

You can power the micro:bit via the USB cable you used to load the code or you can use a battery pack plugged into the Bit Board.

The LED should turn on, then after one second turn off, then after another second turn on again, and repeat.

Follow along with our recorded Live Stream!

You can watch the full video of us walking through this project, along with explaining and exploring the code: https://youtube.com/live/z8ONp1Q9ZV0
