CH40-D - Thumbstick LED Matrix Map

We'll connect the Thumbstick with a Crazy Circuits Ribbon Cable using all four wires.

Plug the three-wire connector of the Crazy Circuits Ribbon Cable into the row with Pin 0 on the Bit Board. The wire colors should match the pin header colors, with S1 (yellow) going to the yellow pin.

Next, plug S2 (orange) into Pin 13. (S2 is separated from the three-wire connector to allow you to plug it into another row.)

To the Thumbstick plug - (black) into GND, + (red) into +5V; S1 (yellow) into VRx; S2 (orange) into SW.

We won't plug anything into VRy pin for this example.

We used a 3D printed part we designed to hold the Thumbstick in place on a LEGO baseplate.

We attached two 2x4 LEGO Bricks to the bottom of the 3D printed holder to allow it to snap onto the LEGO Baseplate a bit easier.

Alternately you can try to use some LEGO bricks and some rubber bands to hold the sensor in place, or just hold it in your hand.

3D print your own Thumbstick Sensor Holder.

If you've never used a micro:bit before you'll want to check out this guide: Bit Board V2 Setup and Use

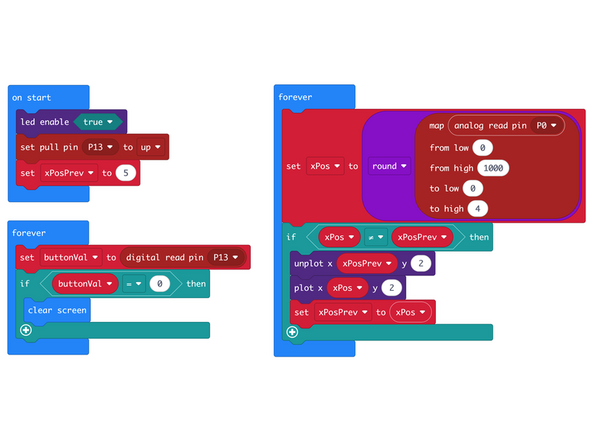

We're going to load the following code for our Thumbstick LED Matrix Map program: https://makecode.microbit.org/_fAJLew4y2...

In the on start block we'll enable the LED matrix and set Pin 13 to pull up.

In one forever loop we'll set buttonVal to read Pin 13 (which is connected to the button/switch on the Thumbstick) and if it's pressed we'll clear the screen.

In the other forever loop we'll set xVal using the map function. We also use round to ensure we get an integer (whole number) rather than a floating point (decimal) value.

We then check if xPos is not equal to xPosPrev before we unplot the old value and then plot the new value.

Finally, we store the value of xPos in the variable xPosPrev for the next time around.

This code functions just like the previous example but with much less code. Typically less code is easier to troubleshoot and debug. (As long as it's not overly complicated!)

Once the code is loaded it should start running immediately.

You can power the micro:bit via the USB cable you used to load the code or you can use a battery pack plugged into the Bit Board.

Move the Thumbstick left and right and you should see different pixels light up. Press the button to clear the screen.

We get the same final results as the previous version but with much less code.

Follow along with our recorded Live Stream!

You can watch the full video of us walking through this project, along with explaining and exploring the code: https://www.youtube.com/live/itzcDaRWh9Q
