Introduction

After building your LEGO Ambulance, follow this step-by-step guide to add an LED circuit with components from your Crazy Circuits Starter Set!

Video Overview

Featured Document

  1. With the standard build completed, remove the roof to give you easy access to where the add-on modification will go. Gather the extra parts pictured. Gather the extra parts pictured.
    • With the standard build completed, remove the roof to give you easy access to where the add-on modification will go.

    • Gather the extra parts pictured.

  2. Assemble the platform pictured and place the 1x2 brick where shown in photo 1. The 1x2 brick will be needed in order to mount the completed platform into place. Although pictured, wait to insert the platform into the ambulance until the end when you've added the circuitry to it.
    • Assemble the platform pictured and place the 1x2 brick where shown in photo 1. The 1x2 brick will be needed in order to mount the completed platform into place.

    • Although pictured, wait to insert the platform into the ambulance until the end when you've added the circuitry to it.

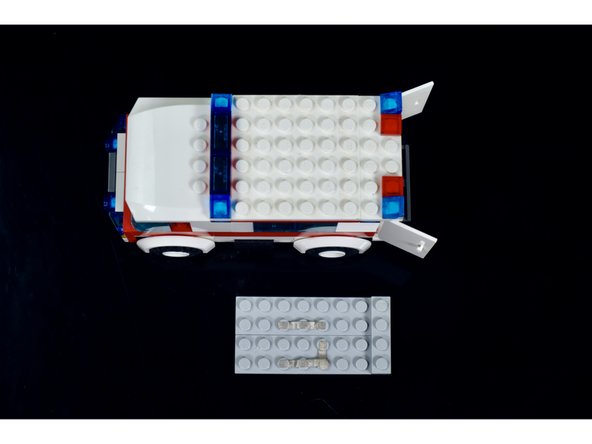

  3. Measure, cut, peel and stick tape paths as pictured both here and the attached diagram. Use the second photo and the attached diagram to help you position and press the circuit components into place.
    • Measure, cut, peel and stick tape paths as pictured both here and the attached diagram.

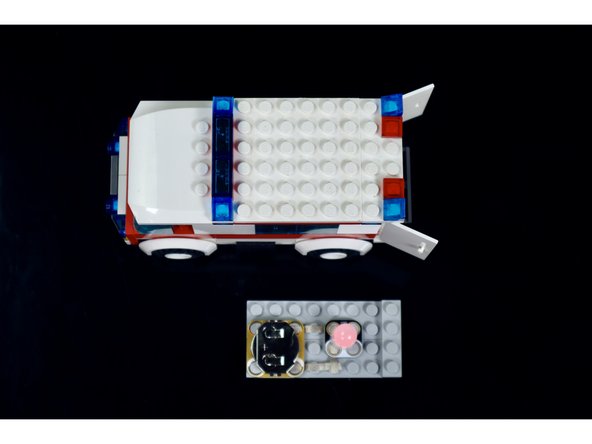

    • Use the second photo and the attached diagram to help you position and press the circuit components into place.

Finish Line
