Introduction

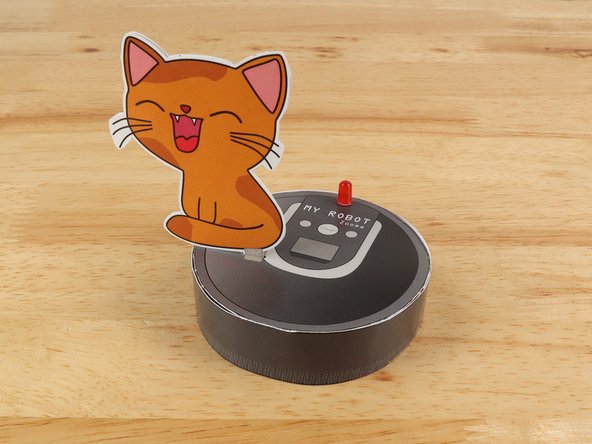

Create your own mini robot vacuum that moves around and blinks! Just add a Self Sticking Vibrating Motor, 5mm Blinking LED, a CR2032 battery, and some Maker Tape. There's a full-color version as well as a black & white version that makes a great coloring activity.

You can make this project (and many more!) with our Origami Circuits Kit.

Video Overview

Featured Document

  1. There are two versions of this template, one that is full-color and one that is black & white so you can color it yourself. The LED is optional. We used a blinking red LED which can be found in the Origami Circuits Kit. If you do choose to use an LED we recommend red or yellow. Using  colors such as blue or white will sometimes cause the motor to not spin.
    • There are two versions of this template, one that is full-color and one that is black & white so you can color it yourself.

    • The LED is optional. We used a blinking red LED which can be found in the Origami Circuits Kit.

    • If you do choose to use an LED we recommend red or yellow. Using colors such as blue or white will sometimes cause the motor to not spin.

    • For extra fun, cut out the paper cat and use it for the switch!

Finish Line
