Introduction
Want to turn off some LEDs with a clap of your hands? With the micro:bit V2 it's easy!
Video Overview
Featured Document
-
-
Gather your components. You will need a micro:bit V2, a Bit Board, some Crazy Circuits LEDs, and some 1/8" Maker Tape.
-
You do need a V2 micro:bit as it has a built-in microphone. Previous versions will not work for this project.
-
Once you have your components, assemble the parts onto a LEGO baseplate and use Maker Tape to connect the LEDs.
-
-
-
If you've never used a micro:bit before you'll want to check out this guide: Bit Board V2 Setup and Use
-

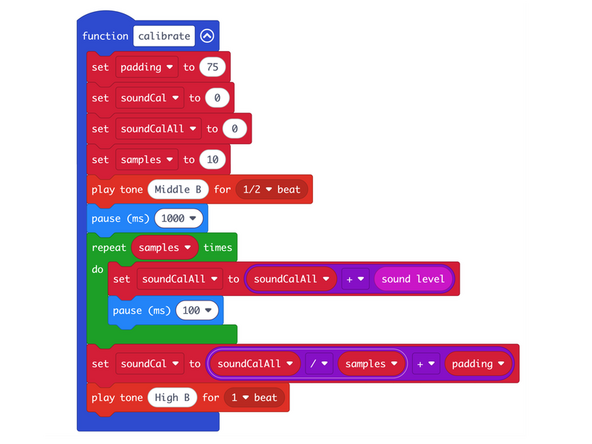

We're going to load the following code for our The Clapper program: https://makecode.microbit.org/_h6h1Px6Uh...
-
-
-

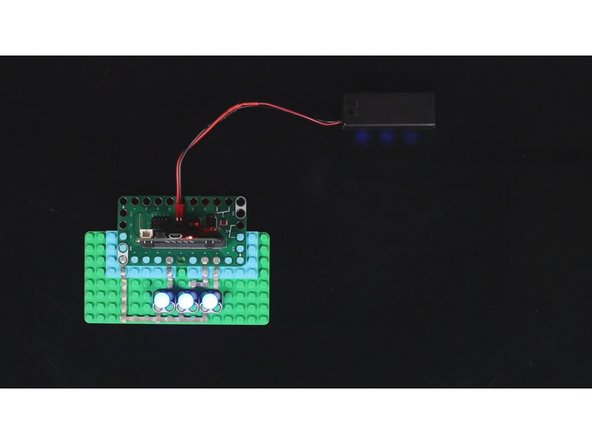

Once you've got your circuit built, and the code is loaded, you can test it out.
-
Power up your circuit using a USB cable plugged into the micro:bit or using a two AAA battery pack plugged into the Bit Board.
-
Clap your hands near the micro:bit and the LEDs should turn off!
-
But wait! The LEDs turn back on after a second, so get ready to clap again!
-
Keep clapping, my friend... Keep clapping.
-
