Introduction

Use the Arduino IDE to view serial data sent from the micro:bit to your computer.

  1. For our Arduino projects it's sometimes nice to see data in the Serial Monitor of the Arduino IDE.
    • For our Arduino projects it's sometimes nice to see data in the Serial Monitor of the Arduino IDE.

    • While we love Microsoft MakeCode for micro:bit programming sometimes we miss the Arduino Serial Monitor.

    • The good news is... you can still use it!

  2. To use the Arduino Serial Monitor with a micro:bit you'll need to have the micro:bit connected to your computer with a USB cable.
    • To use the Arduino Serial Monitor with a micro:bit you'll need to have the micro:bit connected to your computer with a USB cable.

    • You'll then need to launch the Arduino software, and under the Tools menu you'll see the Port sub menu.

    • Select your micro:bit from the sub menu.

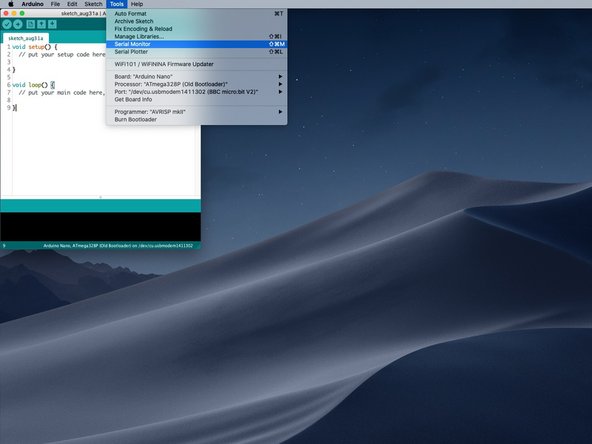

  3. Under the Tools menu select Serial Monitor.
    • Under the Tools menu select Serial Monitor.

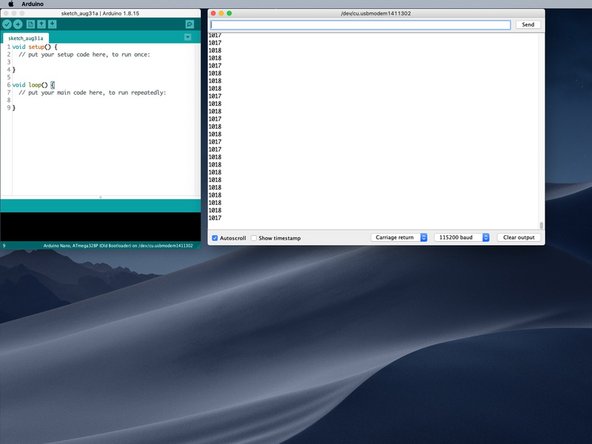

  4. Set the baud rate to 115200 baud in the bottom right corner of the Serial Monitor window.
    • Set the baud rate to 115200 baud in the bottom right corner of the Serial Monitor window.

    • You should see your data coming in from the micro:bit

    • Note that you should not try to upload a sketch to the micro:bit while using the Arduino software. (Yes, it is possible, but we won't dive into that topic here.)

    • Remember, the code running on the micro:bit is not the same code you see in the sketch window in the Arduino software!

  5. Here's a short example of how we set up MakeCode to send serial data to the computer.
    • Here's a short example of how we set up MakeCode to send serial data to the computer.

    • Remember to have the USB cable plugged in to both the computer and the micro:bit!
